Warning!

Disconnect the engraver from power before cleaning.

Caution!

• The surface of the Galvo lens is prone to scratching. Avoid pressing hard or touching the lens, which can cause scratches by grinding debris into the lens.
• Remember to cover the lens with the lens cap after cleaning and between uses.

Cleaning Frequency: daily, after each use

Tools Needed:

• Lens brush
• Laser-safe microfiber cloth/cotton swab
• Ethanol absolute/Laser-safe cleaning solution

Step 1: Remove dust and debris using a lens brush.

Step 2: Dip the cloth or cotton swab in the solution and squeeze out excess fluid.

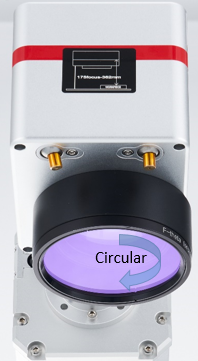

Step 3: Wipe clean with the cloth/swab in gentle, circular motions.

Step 4: Cover the lens with its protective cap.
